CAARLA 2-in-2-out 600V IP65 Solar PV Surge Protection DC Box Combiner

CAARLA 2-in-2-out 600V IP65 Solar PV Surge Protection DC Box Combiner Box with DC Circuit Breaker, Fuse, and Surge Protector, PVC Material, Wall-Mounted, Water Resistant

$69.63 $181.75

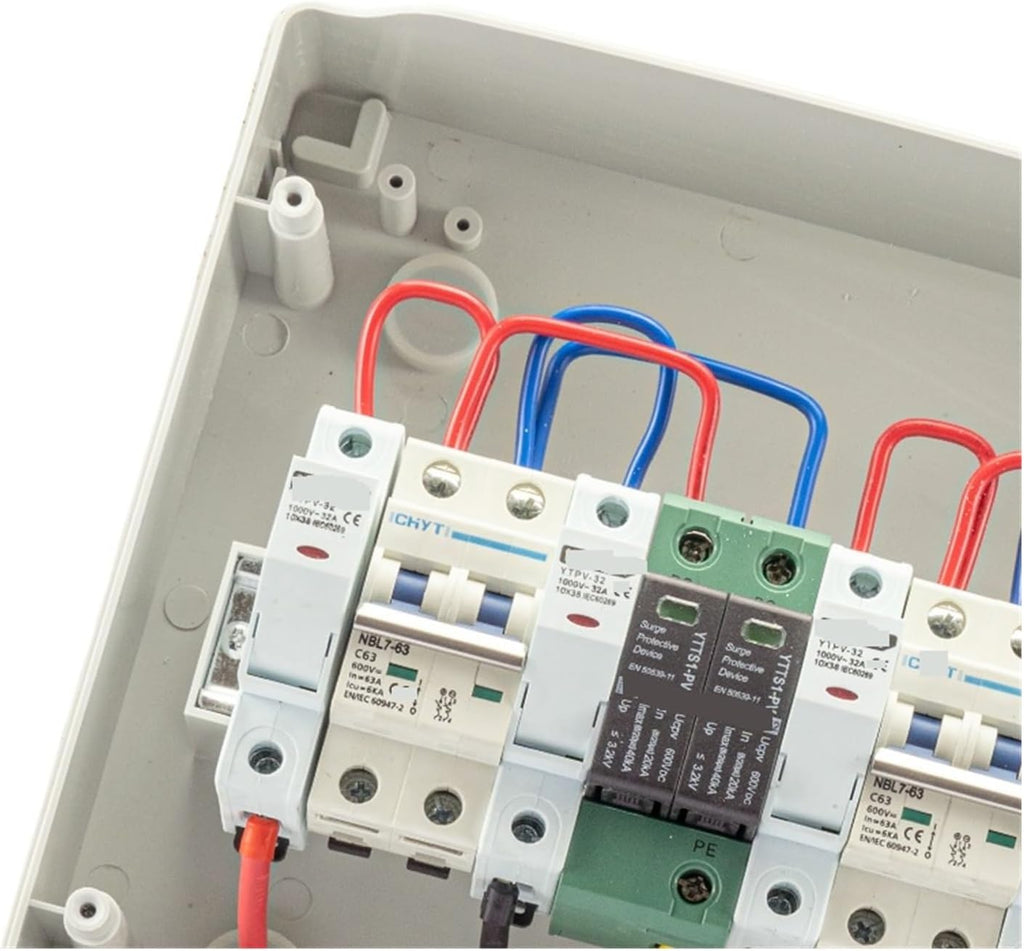

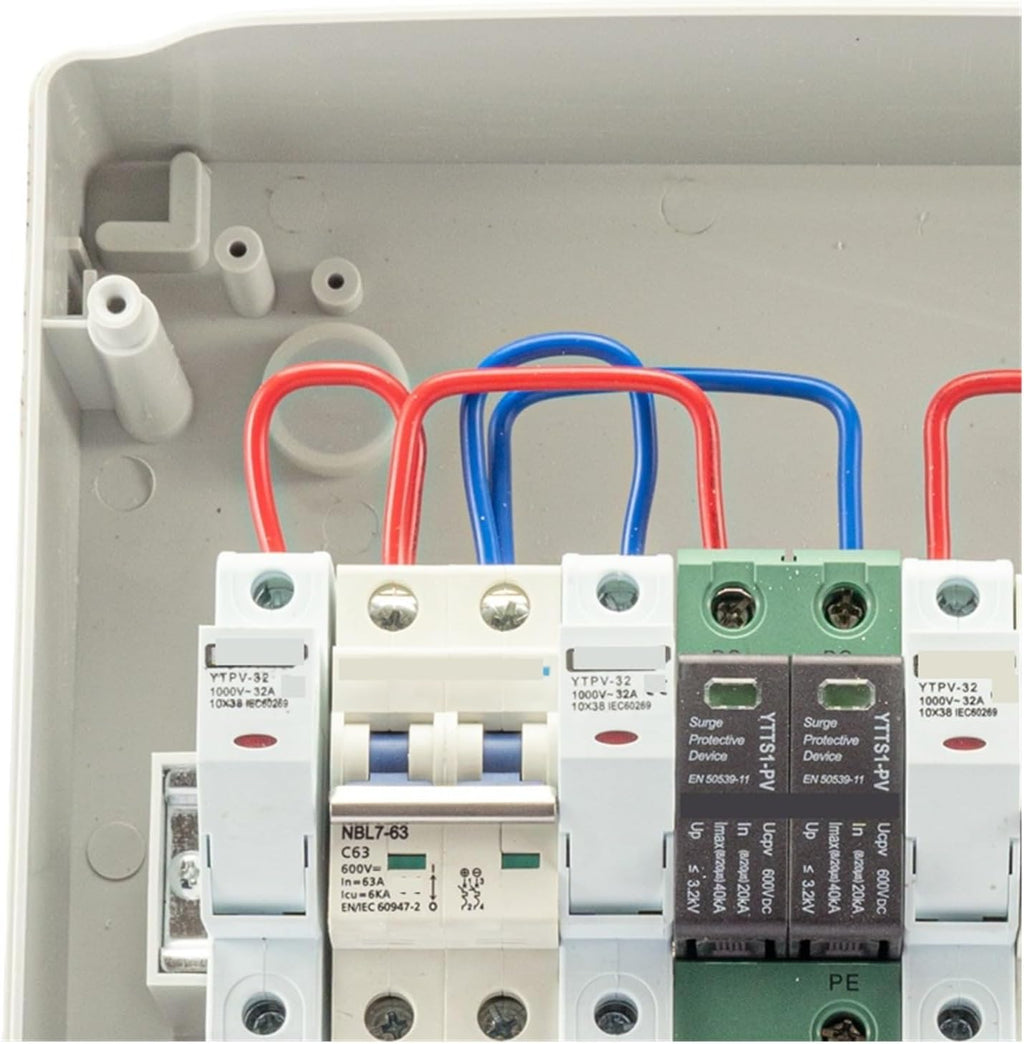

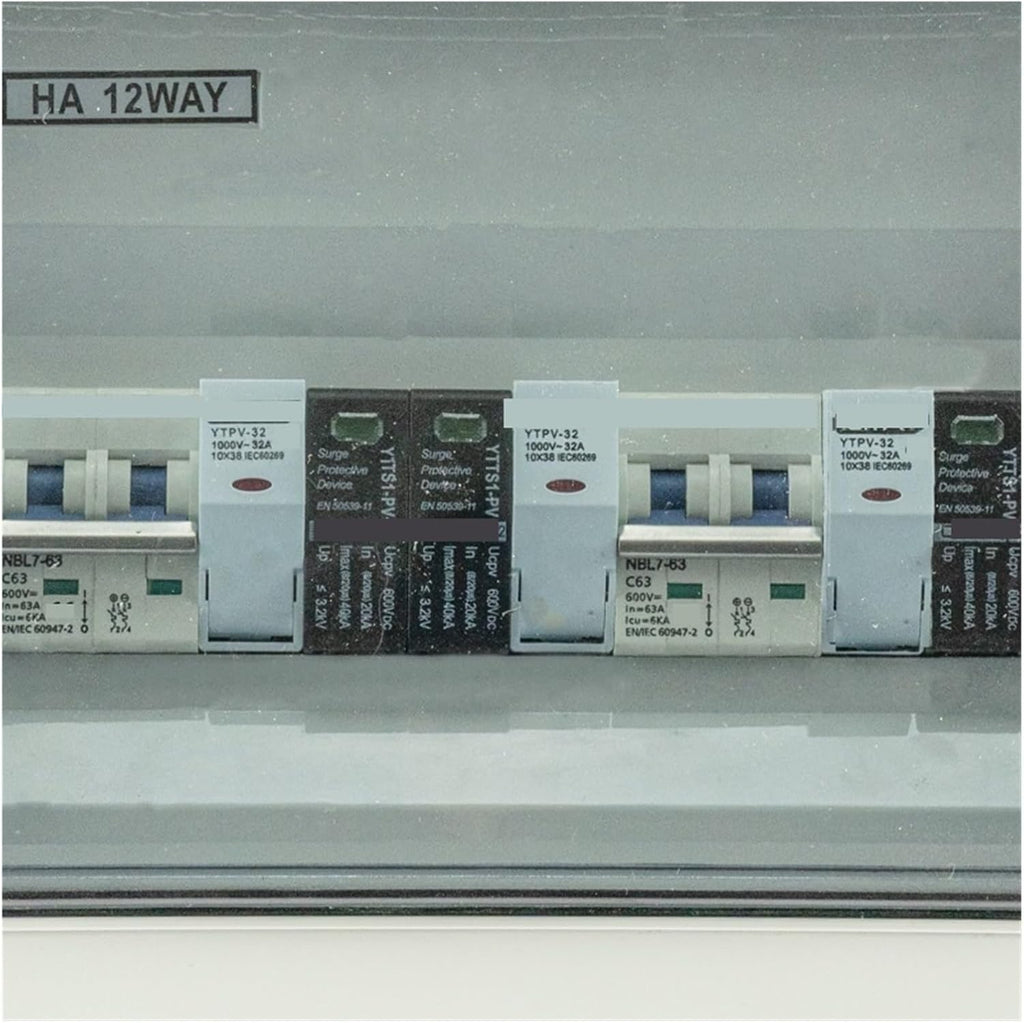

2strings 2in 2out DC600V use DC600V circuit breaker 2 pole 2pcs,DC600V surge protector 2 pole 2 pcs,DC1000V fuse 15A 4 pcs, solar connector 2 pair.
Product introduction
PV String DC Combiner Boxes are key components in the solar power systems, which are placed between solar modules and the inverters.
Product functions
Simplify the physical between solar panel and inverter
Fault current protection for each String
Easy installation and maintenance
Product features
Very high impact resistance
Easy machining with normal tools
IP65
Wide operation temperature range
Non-conductive
Good resistance to chemical corrosion
Light weight
Excellent insulating properties
Cost-effective material for harsh environments
Product specifications
Solar PV DC 2 in 2 out Combiner Box
Rated voltage of photovoltaic systems
DC 600V
Max input amp for each string
15A
Input strings
2
Number of output strings
2
grade ip65/ Lighting protection
Category of test
II grade protection
Nominal discharge amp
20KA
Max discharge amp
40KA
Volt protection level
3.2KV
SPD Max operation voltage
DC 600V
Poles
2P
Structure characteristic
Systems
Protection grade
IP65
Output switch
DC circuit breaker
Solar connector
Standard
Box material
PVC
Installation method
Wall mounting type
Operating temperature
-25-+60
Installation: indoors/outdoors
Yes
Mechanical parameter

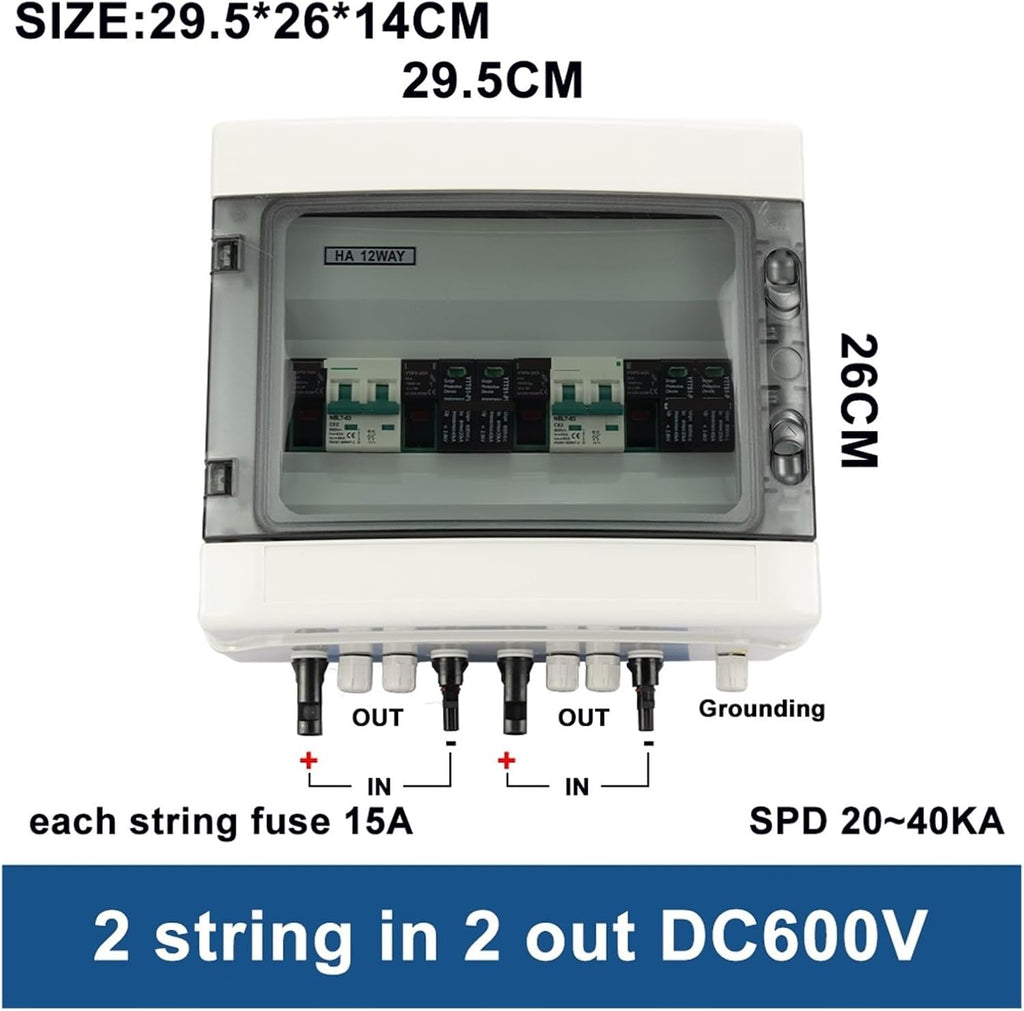

Widh*high*Depth(mm)
295*260*140
